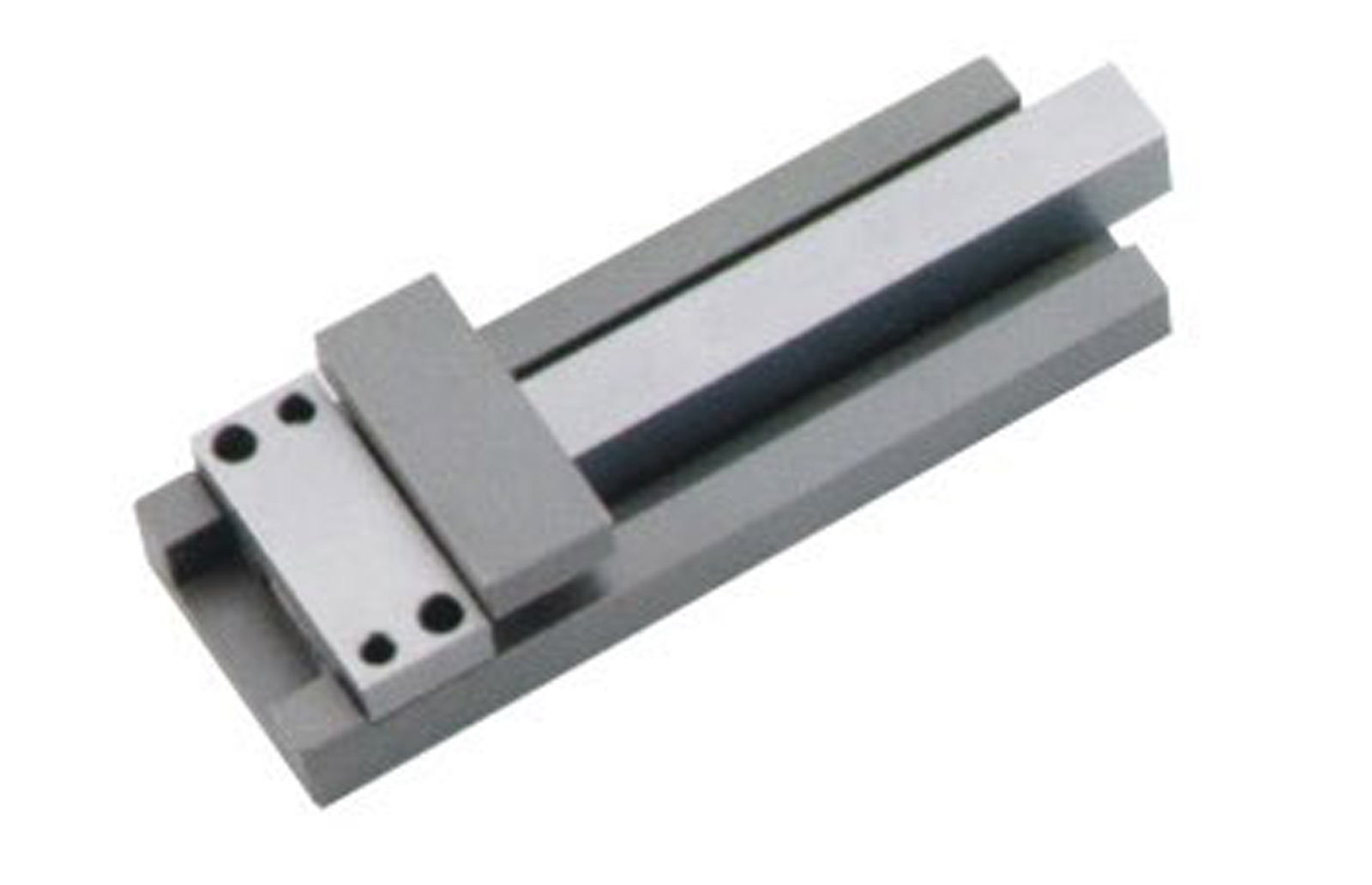

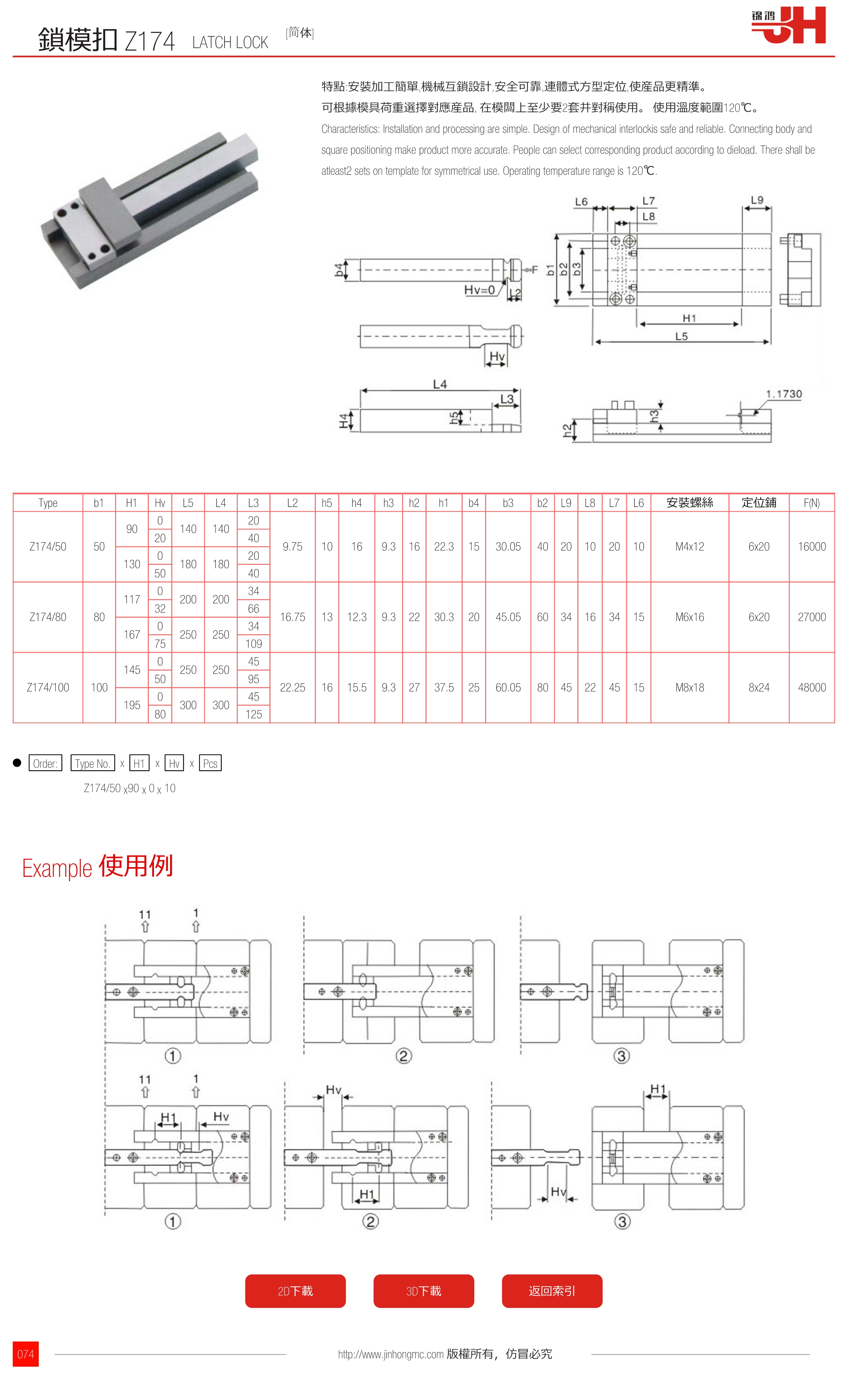

特點:安裝加工簡單,機械互鎖設計,安全可靠,連體式方型定位,使産品更精準。
可根據模具荷重選擇對應産品, 在模闆上至少要2套并對稱使用。 使用溫度範圍120℃。
Characteristics: lnstallation and processing are simple. Design of mechanical interlockis safe and reliable. Connecting body and square positioning make product more accurate. People can select corresponding product aocording to dieload. There shall be atleast2 sets on template for symmetrical use. Operating temperature range is 120℃.
| Type | b1 | H1 | Hv | L5 | L4 | L3 | L2 | h5 | h4 | h3 | h2 | h1 | b4 | b3 | b2 | L9 | L8 | L7 | L6 | 安裝螺絲 | 定位鋪 | F(N) |
| Z174/50 | 50 | 90 | 0 | 140 | 140 | 20 | 9.75 | 10 | 16 | 9.3 | 16 | 22.3 | 15 | 30.05 | 40 | 20 | 10 | 20 | 10 | M4x12 | 6x20 | 16000 |
| 20 | 40 | |||||||||||||||||||||
| 130 | 0 | 180 | 180 | 20 | ||||||||||||||||||
| 50 | 40 | |||||||||||||||||||||
| Z174/80 | 80 | 117 | 0 | 200 | 200 | 34 | 16.75 | 13 | 12.3 | 9.3 | 22 | 30.3 | 20 | 45.05 | 60 | 34 | 16 | 34 | 15 | M6x16 | 6x20 | 27000 |
| 32 | 66 | |||||||||||||||||||||
| 167 | 0 | 250 | 250 | 34 | ||||||||||||||||||
| 75 | 109 | |||||||||||||||||||||
| Z174/100 | 100 | 145 | 0 | 250 | 250 | 45 | 22.25 | 16 | 15.5 | 9.3 | 27 | 37.5 | 25 | 60.05 | 80 | 45 | 22 | 45 | 15 | M8x18 | 8x24 | 48000 |
| 50 | 95 | |||||||||||||||||||||
| 195 | 0 | 300 | 300 | 45 | ||||||||||||||||||
| 80 | 125 |
Z174/50 x 90 x 0 x 10

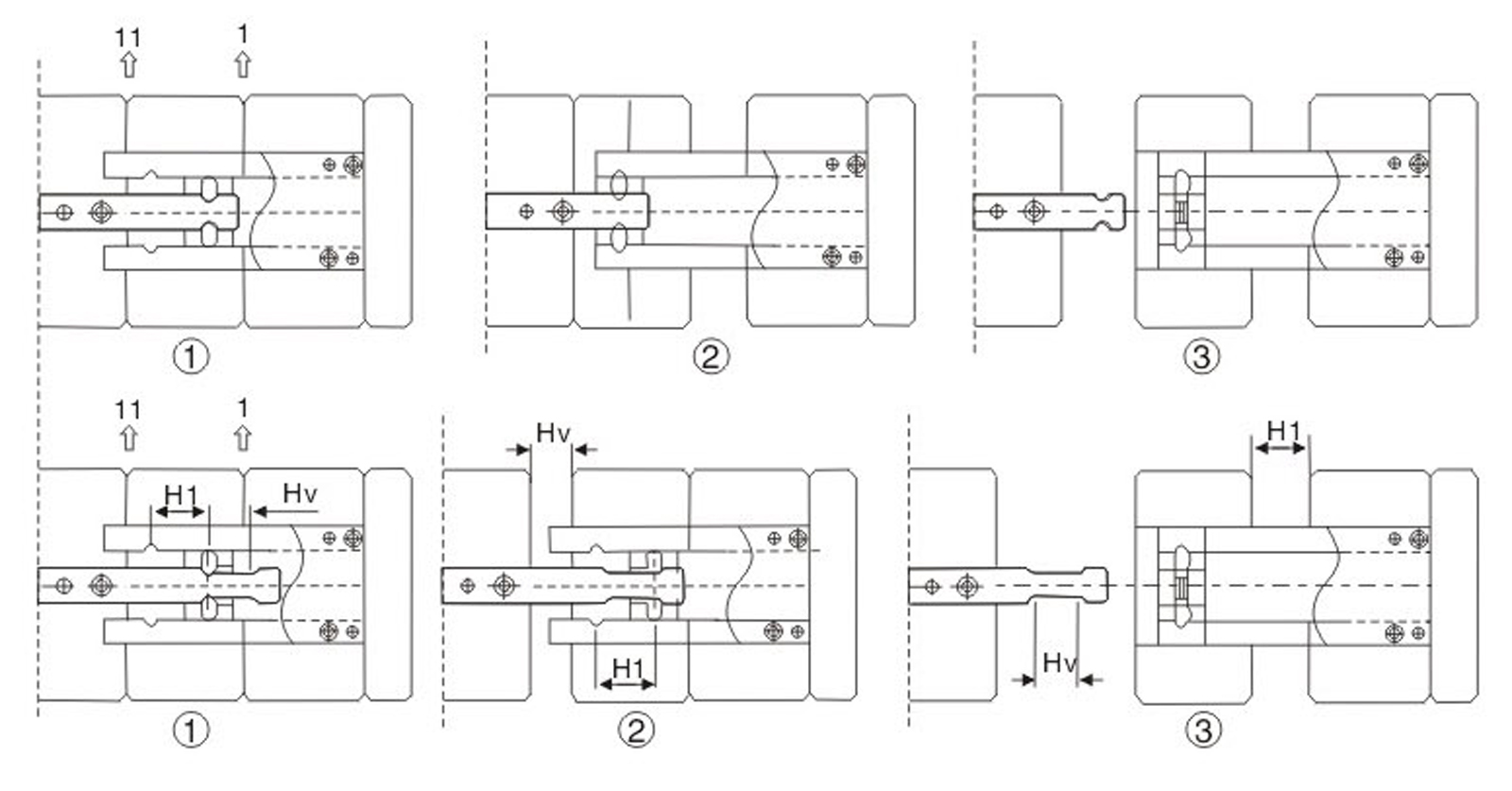

訂購：138-鎖模扣 Z174
